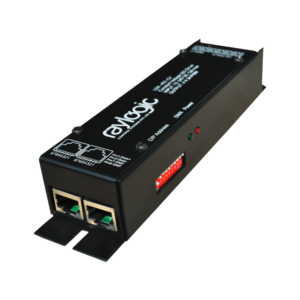

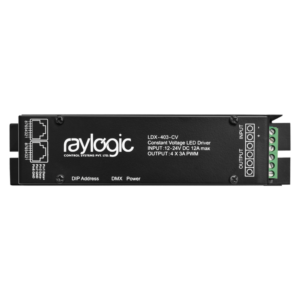

LDX-403-CV
4 channel PWM controller for constant voltage LED strips.
Requires an external power supply.
Width: 210 mm
Height: 100 mm
Depth: 80 mm
4 channels of PWM controls x 3A ( 12 VDC 36W / 24V 72W per channel )
Smooth dimming for LED strips.
Smooth dimming for LED strips.
LDX-403-S Single channel version for 10A load rating. ( 12V 100W / 24V 200W All 4 channels to be paralleled )
Direct channel intensity & fade time control.
Scene fade time programmable between 0 - 250 seconds.
16 groups or areas.
Internal non volatile memory for 60 scenes.
RAYNET RS-485 protocol & command set.
Third party control via RS-485.
DMX-512 protocol selection using DIP switch 10.
DMX OK led indicator for valid DMX signal.
External Fuses required in panel for protection.
iOS and Android phone control via Touchmate app and Raylogic control system.
iOS & Android control via the GO app and GRB hardware.
Control via Raylogic's Keypads direct on RAYNET BUS.
Third party switch control via external processor / Raylogic SCI interface.
DMX-512 control via DMX control desks / software & hardware.
Voice control requires the GO app & GRB hardware along with this product.
Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Enquiry Now

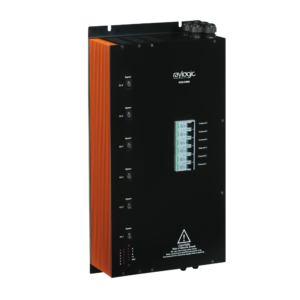

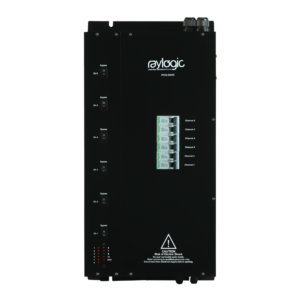

PCD-0605/PCD-0610
Wall mounted 6 channel high capacity dimming system.
Inbuilt power supply.
Power supply for up to 2 Raylogic Keypads.
Width: 300 mm
Height: 600 mm
Depth: 100 mm
6 channels of leading edge dimming controls.
Max load 5A ( PCD-0605 ) / 10A ( PCD-0610 )
Suitable for LED lamps with leading edge dimmable drivers
Max load 5A ( PCD-1205 ) / 10A ( PCD-1210 )
Suitable for LED lamps with leading edge dimmable drivers
Maximum number of LED drivers per channel ( PCD-1205)
Driver rating <= 21W x 25
Driver rating 21-50W x 12
LED Strip drivers suitable for Phase cut use.
Maximum number of LED drivers per channel ( PCD-1205)
Driver rating <= 150W x 4
Driver rating 150W-300w x 2
Direct channel intensity & fade time control.
Scene fade time programmable between 0 - 250 seconds.
16 groups or areas.
Internal non volatile memory for 60 scenes.
RAYNET RS-485 protocol & command set.
Third party control via RS-485.
Inbuilt MCBs ( Miniateure Circuit Breakers )
Mild steel,powder coated panel construction
iOS and Android phone control via Touchmate app and Raylogic control system.
iOS & Android control via the GO app and GRB hardware.
Control via Raylogic's Keypads direct on RAYNET BUS.
Third party switch control via external processor / Raylogic SCI interface.
Voice control / IFTTT via GO app and GRB hardware.
Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
