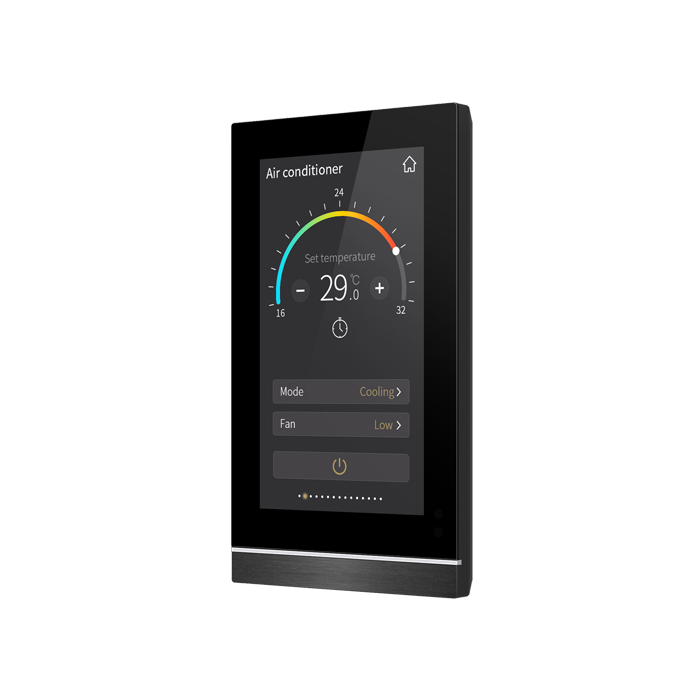

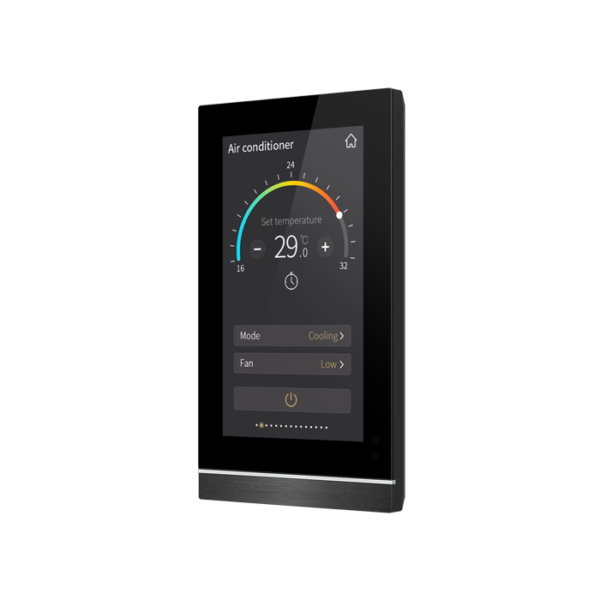

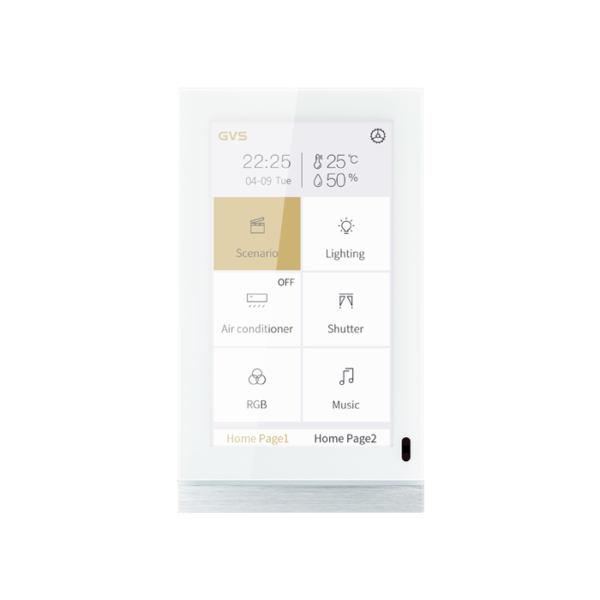

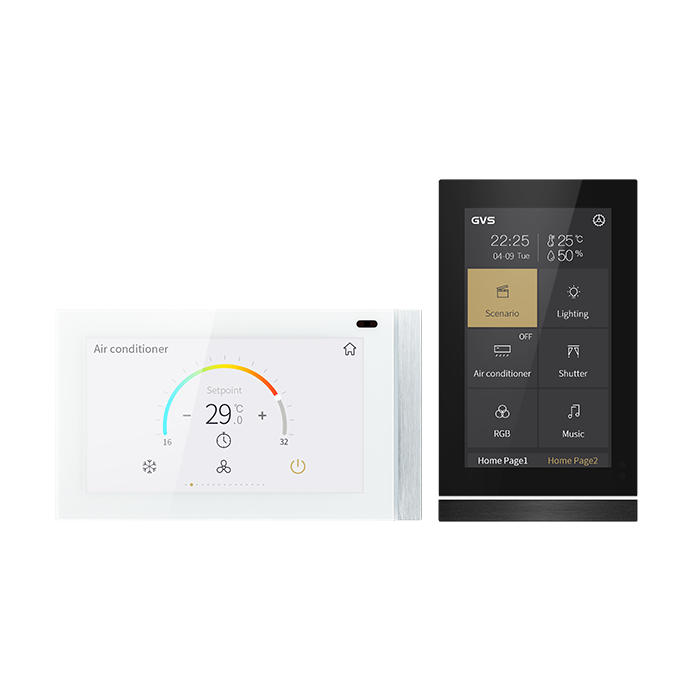

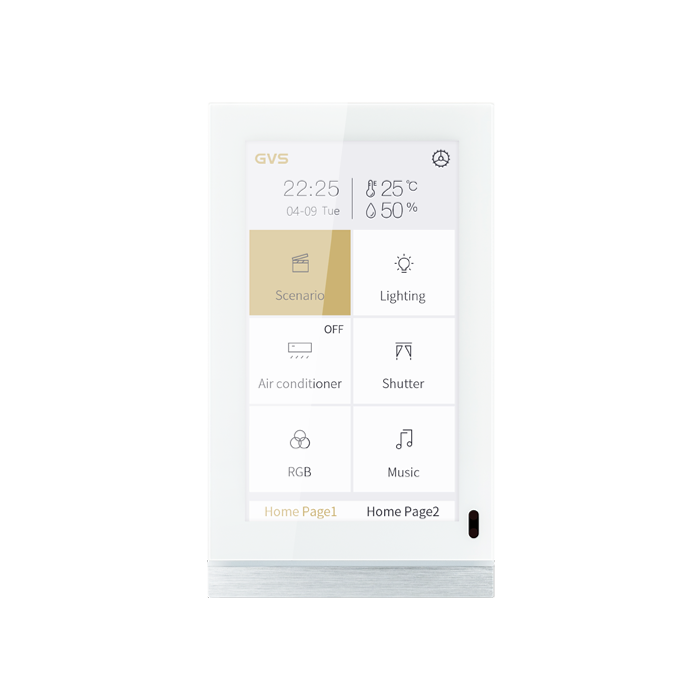

KNX Smart Touch Panel V50s
Weight: 0.3KG
Size: 86 x 148.8 x 11.5mm
Bus voltage: 21-30V DC, via KNX bus
Bus current: 6mA/24V DC, 5mA/30V DC
Bus consumption: <150mW
Voltage: 24-30V DC
Size: 86 x 148.8 x 11.5mm
Bus voltage: 21-30V DC, via KNX bus
Bus current: 6mA/24V DC, 5mA/30V DC
Bus consumption: <150mW
Voltage: 24-30V DC
Current: <99mA/24V DC, <82.5mA/30V DC
Consumption: <2.5W
Operation: –5 °C … + 45 °C
Storage: –25 °C … + 55 °C
Transport: – 25 °C … + 70 °C
Humidity: <93%,except for dewing
Consumption: <2.5W
Operation: –5 °C … + 45 °C
Storage: –25 °C … + 55 °C
Transport: – 25 °C … + 70 °C
Humidity: <93%,except for dewing
Proximity sensor: Approximately 30cm
Installation: Wall-mounted installation,
install the metal plate onto the 80 or 86
junction box firstly, and then install the
device into metal plate.
Installation: Wall-mounted installation,
install the metal plate onto the 80 or 86
junction box firstly, and then install the
device into metal plate.
